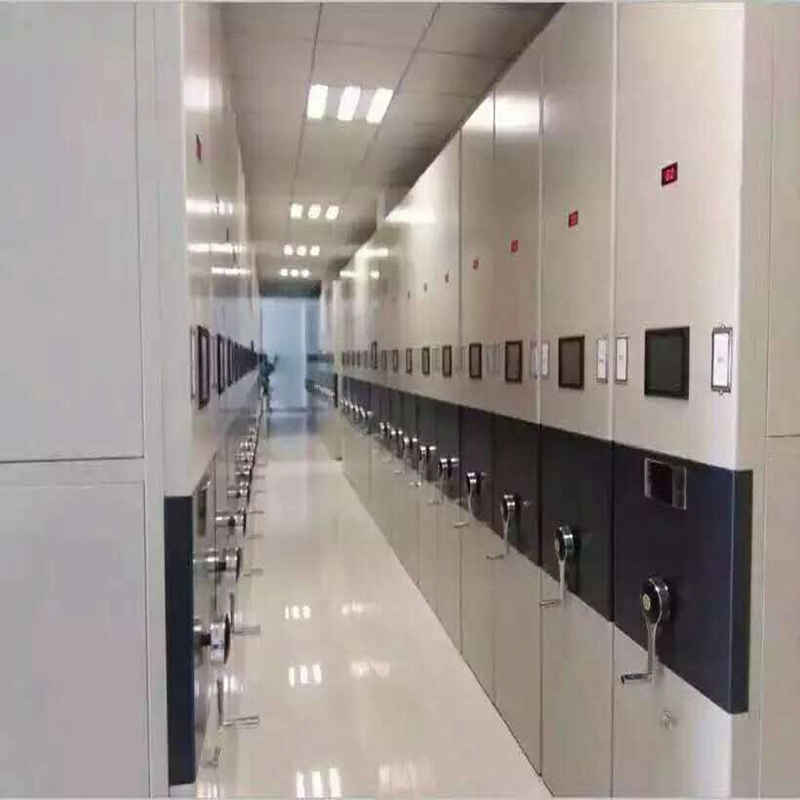

Power Control Mobile Shelving Electronic Smart Archive Book Shelf Compact Bookshelf

1 / 5

Power Control Mobile Shelving Electronic Smart Archive Book Shelf Compact Bookshelf

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

18-S911-9

Size

High

Layer

6 Layers

Side Number

Double Sided

Style

Modern

Operation

Computer Remote Control & Screen Touch

Fire Retardant

ISO 8191

Color

Grey, White or Custom Colors

Warranty

10 Years

Finish

Powder Coated

Product Overview

Power Control Mobile Shelving Electronic Smart Archive Book Shelf Compact Bookshelf

Product Name	Smart Archives Mobile Shelving / Metal Movable Compact Filing Cabinet
Standard Size	H2400 * W900 * D560mm (Per Unit)
Material	SPCC High Quality Cold-rolled Steel (0.5mm - 1.2mm available)
Usage	Office, School, Library, Hospital, Company, Factory, and Commercial Areas
Certificates	ISO9001, ISO 14001 and GB/T28001

Intelligent Control & Safety

🛡️ Triple Security Protection System

Light Protection: Professional lighting between columns. Frames lock automatically when lighting is active to prevent closure while staff are inside.
Infrared Sensor Protection: Active scanning prevents the shelving from moving if any person or object is detected between the columns.
Electromagnetic Protection: Induction system ensures absolute safety for staff during operation.

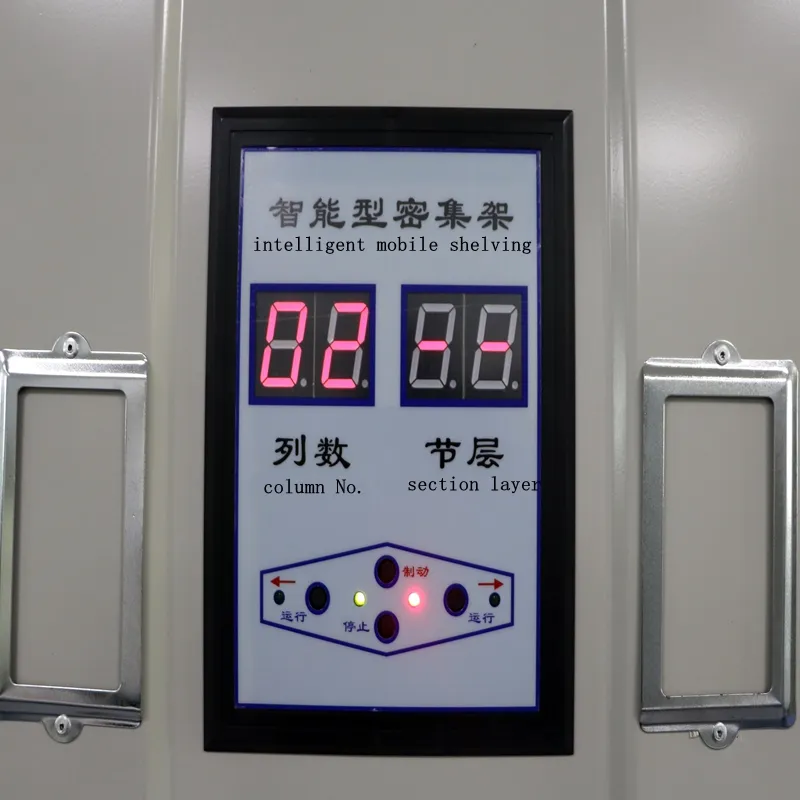

Automatic Positioning: LED light positioning system allows users to find files via computer query; specific layers and columns will flash to indicate location.

⚙️ Advanced Functions

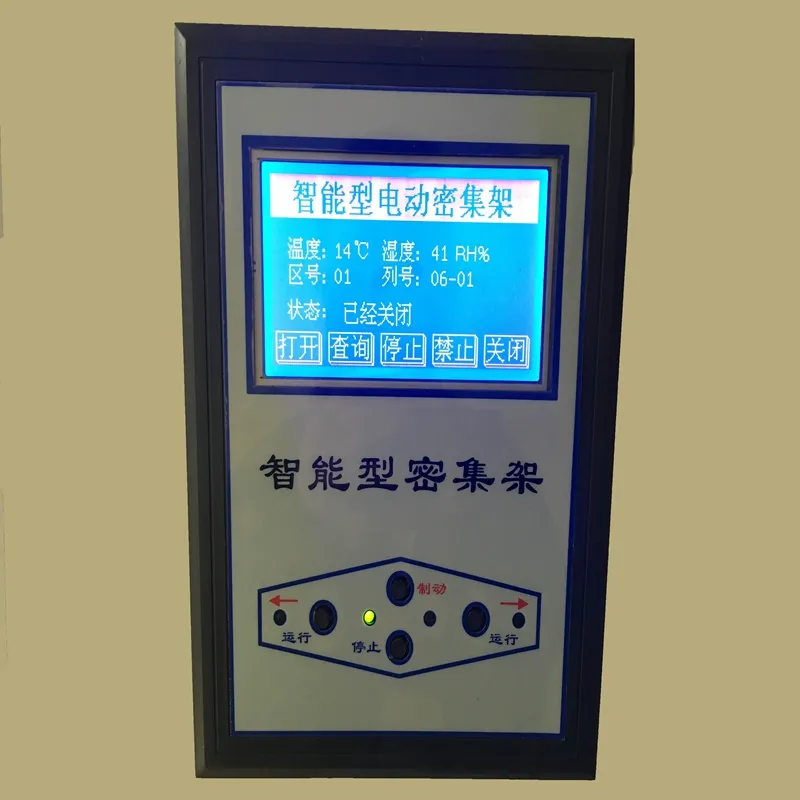

Smart Ventilation: Integrated thermometer and humidity display with automatic ventilation management to protect archives.
Three Operation Modes: Fully independent Manual, Electric, and Computerized control systems.
Remote Management: Power and operations can be managed via authorized password-protected computer interfaces.
Low Voltage Safety: Uses 24V DC safe voltage design.

Product Display

Technical Parameters

Standard Configuration: H2400mm x W900mm x D500mm per bay, 6 storage levels (330mm distance between levels).

Load Capacity: 80kg per level.

Material Thickness: Chassis 3.0mm, Upright 1.5mm, Shelf plate 1.0mm, Side panel 1.2mm, Door 1.0mm.

Process: Emulsifier/Alkaline degreasing, phosphoric acid rust removal, zinc film phosphating, passivation, and electrostatic powder coating.

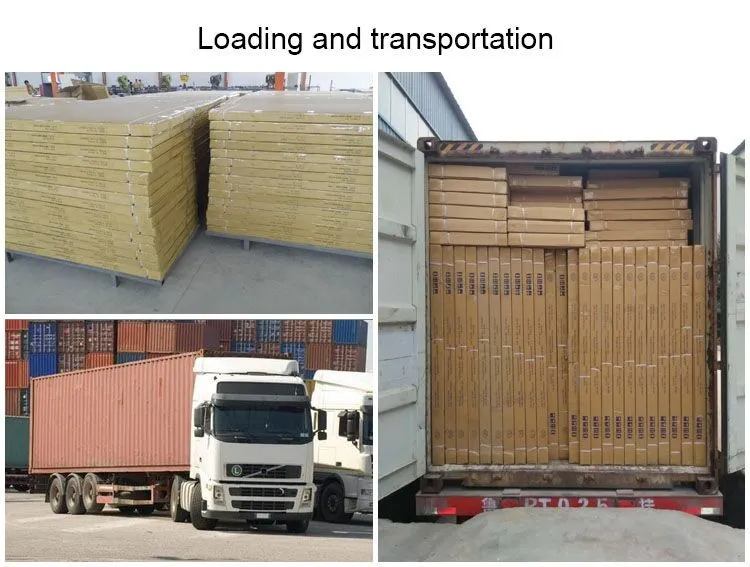

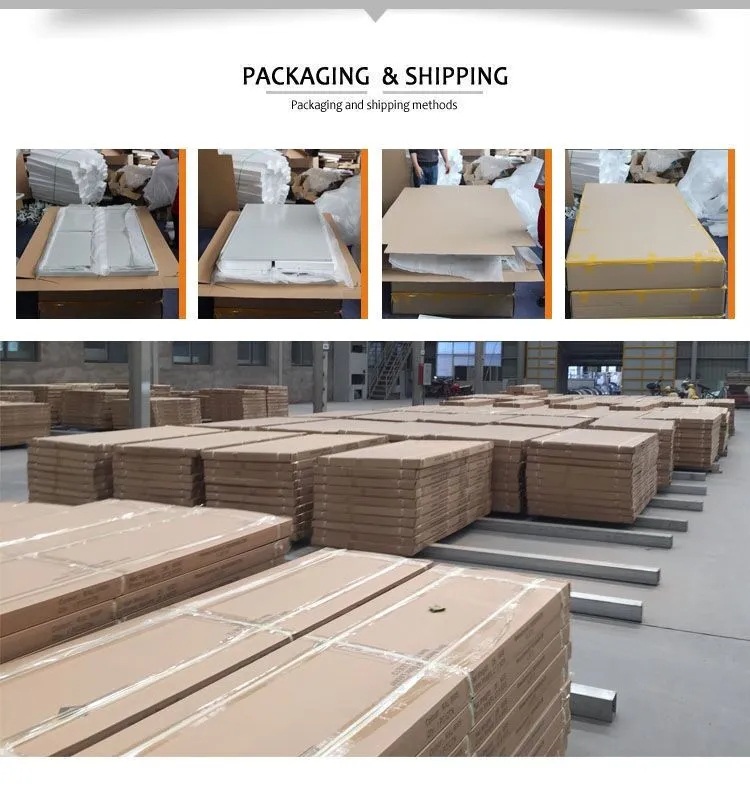

Packaging & Logistics

Totally knock-down structure for efficient transport.
Standard export carton with pearl foam and foam board protection.
Anti-moisture plastic materials included in internal packing.
Accepts EXW, FOB, CNF, and CIF shipping terms.

Frequently Asked Questions

Q: Can the shelving be operated during a power outage?

A: Yes. The intelligent mobile shelving features three independent transmission methods. If there is a power outage, you can use the manual hand wheel to open the shelves easily.

Q: What safety mechanisms are in place to protect staff?

A: We use a triple security system including light protection, infrared sensors, and electromagnetic induction. These ensure the system will not move if anyone is detected between columns.

Q: Is the size and color customizable?

A: Yes, we provide full customization for dimensions (height, width, depth) and colors to match your specific storage environment and design preferences.

Q: How do I locate a specific file in a large archive?

A: Simply enter the file name or number into the computer management system. The corresponding column will open automatically, and LED indicators will flash to pinpoint the exact layer and location.

Q: What is the load capacity and durability of the shelves?

A: Each level is designed to load up to 80kg. The structure is built from high-quality SPCC cold-rolled steel with a powder-coated finish, backed by a 10-year warranty.

Q: How does the system protect paper documents from the environment?

A: The system includes real-time temperature and humidity displays. It features an intelligent ventilation function that can be activated to maintain the optimal storage environment for archives.
